Big Muff Eurorack Conversion, Pt. 3

2 min read

Part One

Part Two

Switching the switch / Converting the power to Eurorack format

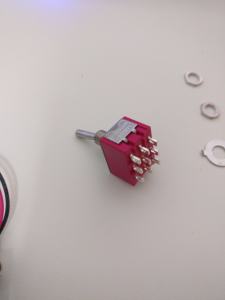

The new switch
The new switch

Foot switches are, understandably, a little hard to press down. They're built to withstand the unsubtle kicks of a guitarist in motion, but applying that much pressure to the Big Muff as it sits in my Eurorack case make me worry it'll do damage to the case (doubly so as my case is made out of cardboard!).

So the next task in my Big Muff Eurorack conversion was to replace the foot switch with a toggle switch. The original switch was a 3PDT switch (a less common variation of switch, but one that allows for proper signal bypass), so it was just a matter of tracking down a 3PDT toggle switch (I used these ones) and switching over the wires.

Not quite right
Not quite right

As you can see, it technically worked, but I forgot to account for the size of the hole in the panel. My current hack solution is to duct tape it in while I think of a more long-term fix.

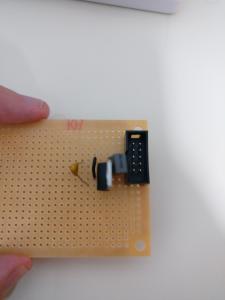

The step-down circuit prior to soldering
The step-down circuit prior to soldering

My next step was to get the pedal running off my eurorack case's power supply. This involved adding a shrouded 10-pin header for connecting to the power bus board, and then adding a circuit to drop the 12v power provided by the case's power supply down to the 9v level expected by the Big Muff.

The step-down circuit post soldering and attaching to the PCB
The step-down circuit post soldering and attaching to the PCB

The circuit utilises an LM7809 component to drop the voltage down to 9v, and is based on some of the talk in this thread over at Muff Wiggler. I soldered the components on to some perfboard and attached that to the Big Muff's PCB using a standoff. It's a bit wobbly, and the whole board is just hanging from wires attached to the front panel, but for now its doing the trick. My next goal is to add CV to the tone and sustain potentiometers (possibly volume as well, though I'm not certain yet).
